Plain Weave Mesh

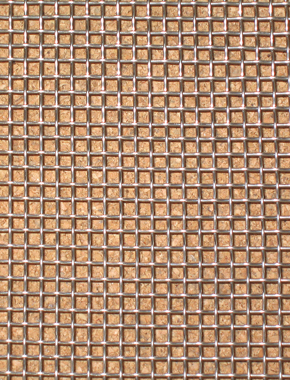

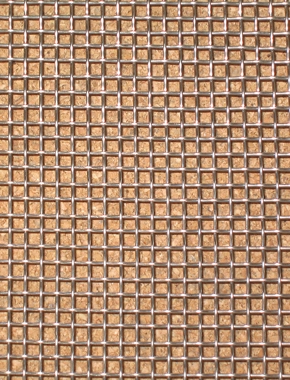

plain-weave-woven-wireWoven wire mesh are normally described using its mesh count and wire thickness.
The wire mesh count is the number of wires per square inch. And the wire thickness is in mm.  For example a  10# .56 (the # stands for mesh), means 10 horizontal wires per inch and 10 vertical wires per inch. This mesh count gives 100 apertures (holes) per square inch.
As the woven mesh count goes up the wire thickness tends to decrease keeping the open area between 40 and 60 percent. If you look at the wire mesh chart there are examples that fit outside these open areas.  The smallest aperture we stock is 0.025 or 25 microns, this is on the wire mesh count 500# .025.
We stock Aluminium, stainless steel 304 (ss304), stainless steel 316 (ss316), brass and copper mesh.
Woven wire meshes are often called knitted wire screen or fine wire meshes.
We sell knitted wire meshes by the square meter. The roll is 1.2m wide and we sell this as a length off the roll. Hence a 1m length would be 1.2 square meters.  When you find the mesh count and material you require then input the square meters in the quantity box at the end of the chart. It will give you a price which you can send to the shopping basket. All the fine wire meshes are normally in stock, the lead time is 2-5 days.


Product Filter

Ex VAT Inc VAT
Metric Imperial
List Grid

Mesh count

Finish

Aperture

Thickness

Open area

Micron



First 1 2 3 4 5 6 7 8 9 Last

Mesh
count
Thickness
Finish
Aperture
Open
area
Micron
Height
Quantity

Price

2# 1.6mm SS 304
Mesh
count:
2
Thickness: 1.6 mm0.063 (in)
Finish: stainless steel 304
Aperture: 11.1 mm0.0437 (in)
Open
area:
76
Micron: 11100
Height: 1200 mm4 ft

Update
Prices

Price: £79.67
£66.39
(per linear (m))

Next Day Optional
product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 2# 2.0mm SS 304
    Mesh
    count:
    2
    Thickness: 2 mm0.0787 (in)
    Finish: stainless steel 304
    Aperture: 10.7 mm0.0421 (in)
    Open
    area:
    71
    Micron: 10700
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £99.54
    £82.95
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 3# 1.6mm SS 304
    Mesh
    count:
    3
    Thickness: 1.6 mm0.063 (in)
    Finish: stainless steel 304
    Aperture: 6.8667 mm0.027 (in)
    Open
    area:
    66
    Micron: 6866.7
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £97.54
    £81.28
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 4# 0.9mm SS 304
    Mesh
    count:
    4
    Thickness: 0.9 mm0.0354 (in)
    Finish: stainless steel 304
    Aperture: 5.45 mm0.0215 (in)
    Open
    area:
    74
    Micron: 5450
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £67.12
    £55.93
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 4# 1.25mm SS 304
    Mesh
    count:
    4
    Thickness: 1.25 mm0.0492 (in)
    Finish: stainless steel 304
    Aperture: 5.1 mm0.0201 (in)
    Open
    area:
    64
    Micron: 5100
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £87.88
    £73.23
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 4# 1.6mm SS 304
    Mesh
    count:
    4
    Thickness: 1.6 mm0.063 (in)
    Finish: stainless steel 304
    Aperture: 4.75 mm0.0187 (in)
    Open
    area:
    56
    Micron: 4750
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £115.42
    £96.18
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 5# 1.00 SS 304
    Mesh
    count:
    5
    Thickness: 1 mm0.0394 (in)
    Finish: stainless steel 304
    Aperture: 4.08 mm0.01606 (in)
    Open
    area:
    65
    Micron: 4080
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £79.46
    £66.22
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 6# 0.9mm SS 304
    Mesh
    count:
    6
    Thickness: 0.9 mm0.0354 (in)
    Finish: stainless steel 304
    Aperture: 3.3333 mm0.01312 (in)
    Open
    area:
    62
    Micron: 3333.3
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £78.71
    £65.59
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 6# 0.9mm SS 316
    Mesh
    count:
    6
    Thickness: 0.9 mm0.0354 (in)
    Finish: stainless steel 316
    Aperture: 3.3333 mm0.01312 (in)
    Open
    area:
    62
    Micron: 3333.3
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £107.99
    £89.99
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide
  • 6# 1.25mm SS 304
    Mesh
    count:
    6
    Thickness: 1.25 mm0.0492 (in)
    Finish: stainless steel 304
    Aperture: 2.9833 mm0.01175 (in)
    Open
    area:
    50
    Micron: 2983.3
    Height: 1200 mm4 ft

    Update
    Prices

    Price: £109.86
    £91.55
    (per linear (m))

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Worldwide

  • First 1 2 3 4 5 6 7 8 9 Last
